6300 Series Deep Groove Ball Bearings
Product benefits of TFL Bearing’s 6300 Series Ball Bearing:
- Single row radial ball bearing
- 6200 available in Metric and Inches / 6300 available in Metric

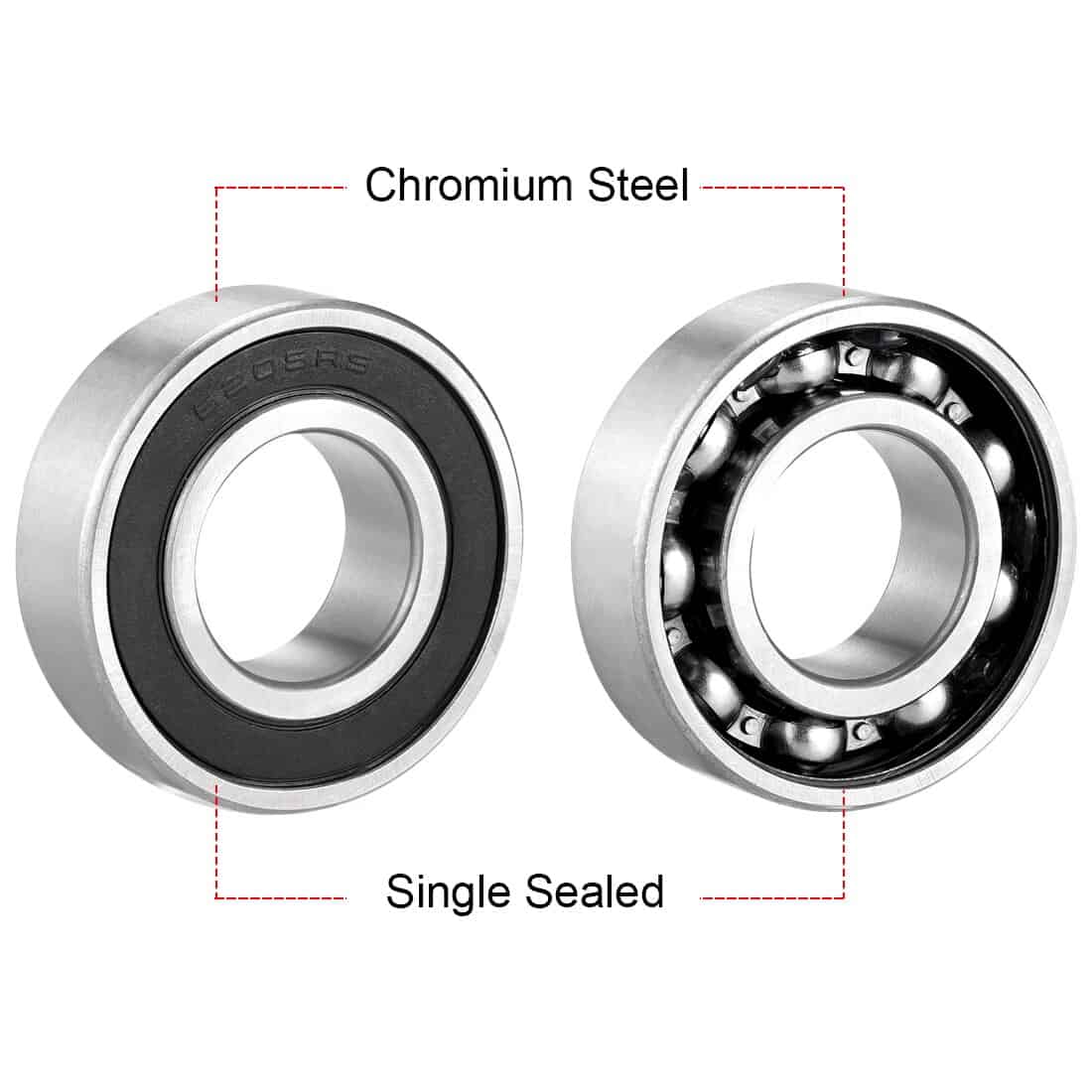

- Made from 52100 High Carbon Steel
- Uses Grade 10 Balls
- ABEC 1
- Chevron SRI 2 and Mobil Polyrex EM2 Grease

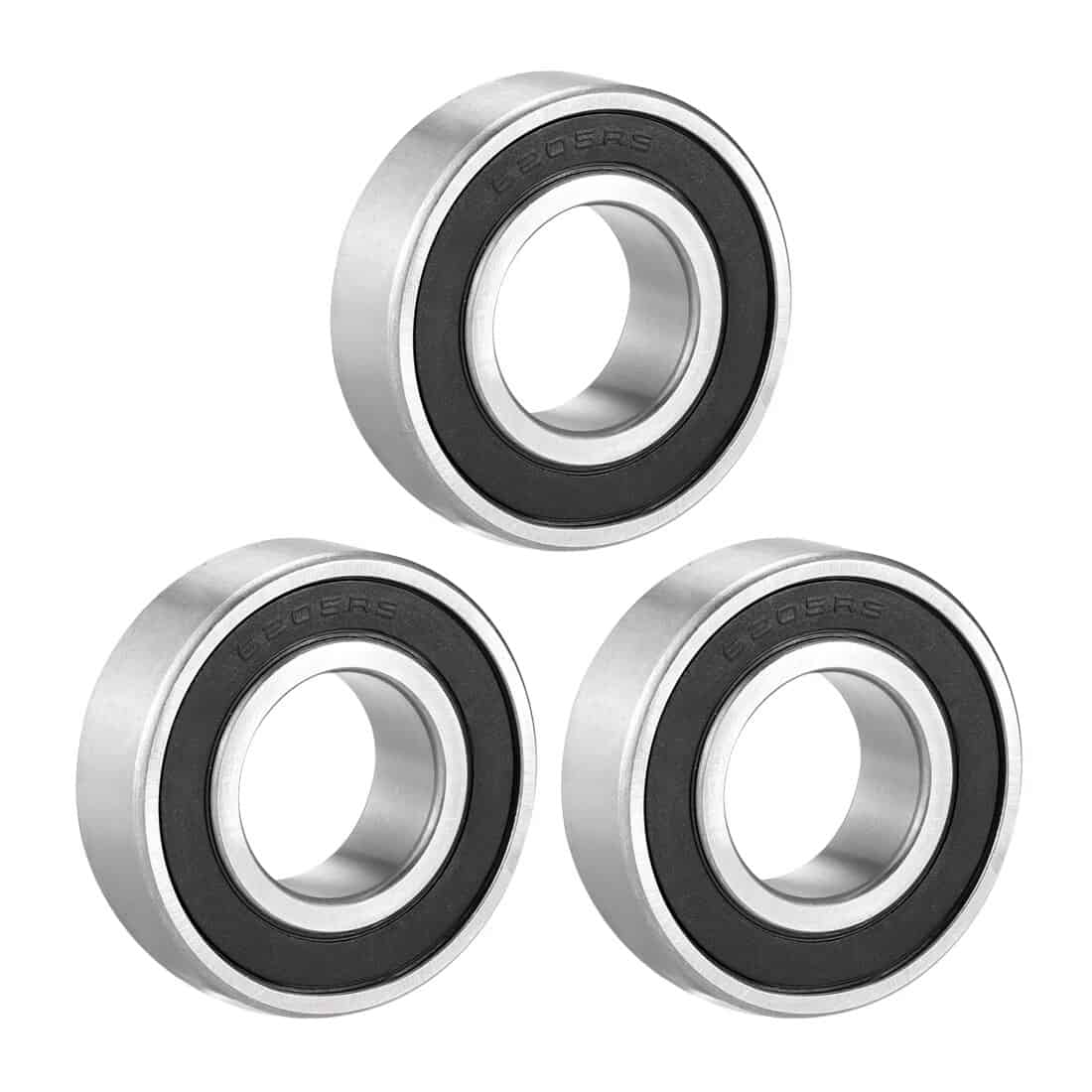

- Available with Rubber Seals, Metal Shields, or Open, Also available in Stainless Steel
- Used in food processing, household appliances, chemical and pharmaceutical industries, motorcycles, pumps, fans, water treatment, and many other industrial applications
- Can be customized to meet your specific needs
This series is similar in function to the 6200 series. Produced with larger ball complement enabling the bearing to withstand greater radial and thrust loads for a given bore size. This series is available with open, shields, seals, or snap rings upon request. Sealed bearings may be obtained with light, standard, or heavy starting torques.
The 6300 series is has a larger ball complement and heavier races, which provide greater radial, thrust, and combined load capacities. Functionally, the 6300 series is similar to the 6200 series. Bearings can have permanent metal shields (ZZ) or removable rubber seals (2RS) installed. As with other series, tolerance grades Abec 1-9, internal clearances C2 to C4, and various cage designs are available.
Manufacturer Name：Bearing brand or OEM
Other options: Metal shield (ZZ) or rubber seal (2RS) can be provided.
Deep Groove Ball Bearings are able to accommodate low to heavy radial loads and low to moderate thrust loads in either direction. They are available with metal shields (ZZ) or rubber seals (2RS). Several tolerance grades (Abec 1-9), internal clearance (C2 to C4) and cage designs are available to best suit the running precision and speed of the application.
Common Options:
- ZZ– Two Metal Shields
- 2RS– Two Rubber Seals
- NR– Snap Ring
- M– Brass Cage
- C0– Normal Internal Clearance
- C3– Greater than normal
| Item # | (d) Bore Diameter | (D) Outer Diameter | (B) Width | (C) Dynamic Load | (Co) Static Load | (C) Dynamic Load | (Grease) Lubrication Speed | (Oil) Lubrication Speed |
|---|
| 6300 | 10 mm | 35 mm | 11 mm | 8060 N | 3400 N | 15000 r/min | 20000 r/min | 26000 r/min |
| 6301 | 12 mm | 37 mm | 12 mm | 9750 N | 4150 N | 14000 r/min | 19000 r/min | 24000 r/min |
| 6302 | 15 mm | 42 mm | 13 mm | 11400 N | 5400 N | 12000 r/min | 17000 r/min | 20000 r/min |
| 6303 | 17 mm | 47 mm | 14 mm | 13500 N | 6550 N | 11000 r/min | 16000 r/min | 19000 r/min |
| 6304 | 20 mm | 52 mm | 15 mm | 15900 N | 7800 N | 9500 r/min | 13000 r/min | 16000 r/min |
| 6305 | 25 mm | 62 mm | 17 mm | 22500 N | 11600 N | 7500 r/min | 11000 r/min | 14000 r/min |
| 6306 | 30 mm | 72 mm | 19 mm | 28100 N | 16000 N | 6300 r/min | 9000 r/min | 11000 r/min |
| 6307 | 35 mm | 80 mm | 21 mm | 33200 N | 19000 N | 6000 r/min | 8500 r/min | 10000 r/min |
| 6308 | 40 mm | 90 mm | 23 mm | 41000 N | 24000 N | 5000 r/min | 7500 r/min | 9000 r/min |
| 6309 | 45 mm | 100 mm | 25 mm | 52700 N | 31500 N | 4500 r/min | 6700 r/min | 8000 r/min |
| 6310 | 50 mm | 110 mm | 27 mm | 61800 N | 38000 N | 4300 r/min | 6300 r/min | 7500 r/min |
| 6311 | 55 mm | 120 mm | 29 mm | 71500 N | 45000 N | 3800 r/min | 5600 r/min | 6700 r/min |
| 6312 | 60 mm | 130 mm | 31 mm | 81900 N | 52000 N | 3400 r/min | 5000 r/min | 6000 r/min |
| 6313 | 65 mm | 140 mm | 33 mm | 92300 N | 60000 N | 3200 r/min | 4800 r/min | 5600 r/min |
| 6314 | 70 mm | 150 mm | 35 mm | 104000 N | 68000 N | 3000 r/min | 4500 r/min | 5300 r/min |
| 6315 | 75 mm | 160 mm | 37 mm | 114000 N | 76500 N | 2800 r/min | 4300 r/min | 5000 r/min |
| 6316 | 80 mm | 170 mm | 39 mm | 124000 N | 86500 N | 2600 r/min | 3800 r/min | 4500 r/min |
| 6317 | 85 mm | 180 mm | 41 mm | 133000 N | 96500 N | 2400 r/min | 3600 r/min | 4300 r/min |
| 6318 | 90 mm | 190 mm | 43 mm | 143000 N | 108000 N | 2400 r/min | 3400 r/min | 4000 r/min |
| 6319 | 95 mm | 200 mm | 45 mm | 153000 N | 118000 N | N/A | 3200 r/min | 3800 r/min |
| 6320 | 100 mm | 215 mm | 47 mm | 174000 N | 140000 N | N/A | 3000 r/min | 3600 r/min |
| 6321 | 105 mm | 225 mm | 49 mm | 182000 N | 153000 N | N/A | 2800 r/min | 3400 r/min |
| 6322 | 110 mm | 240 mm | 50 mm | 203000 N | 180000 N | N/A | 2600 r/min | 3200 r/min |
| 6324 | 120 mm | 260 mm | 55 mm | 208000 N | 186000 N | N/A | 2400 r/min | 3000 r/min |
| 6326 | 130 mm | 280 mm | 58 mm | 229000 N | 216000 N | N/A | 2200 r/min | 2800 r/min |
| 6328 | 140 mm | 300 mm | 62 mm | 251000 N | 245000 N | N/A | 2000 r/min | 2600 r/min |
| 6330 | 150 mm | 320 mm | 65 mm | 276000 N | 285000 N | N/A | 1900 r/min | 2400 r/min |
| 6332 | 160 mm | 340 mm | 68 mm | 276000 N | 285000 N | N/A | 1800 r/min | 2200 r/min |
