Key Types of Cylindrical Roller Bearings: Which One Is Right for You?
Introduction
Main Types of Cylindrical Roller Bearings
Differences between single-row, double-row, and four-row cylindrical roller bearings

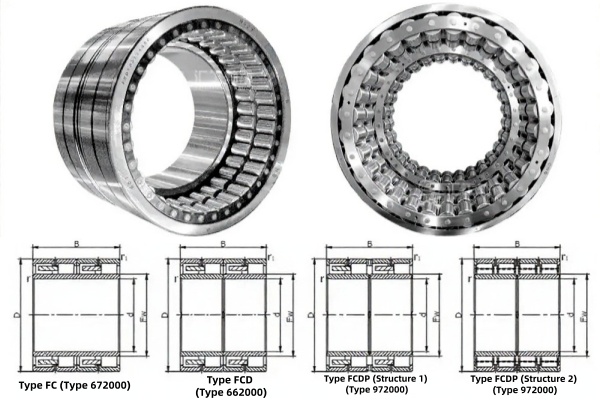

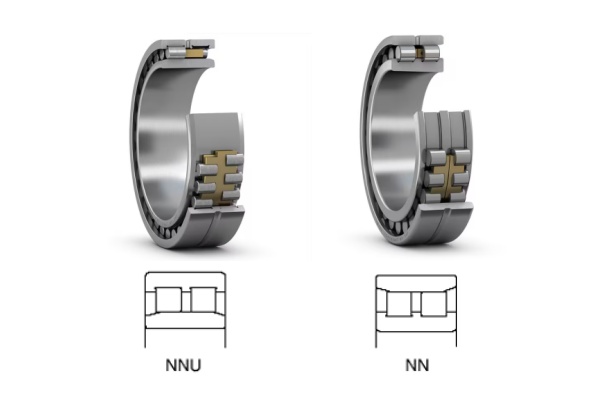

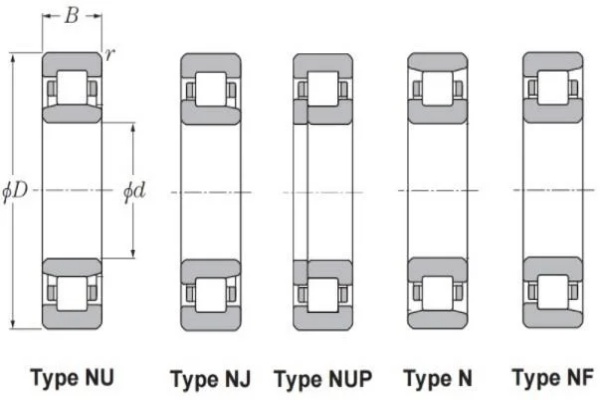

According to the number of rolling rows of cylindrical roller bearings, they can be divided into single-row cylindrical roller bearings, double-row cylindrical roller bearings, and four-row cylindrical roller bearings. Single-row cylindrical roller bearings are designed for simplicity and efficiency. Their compact structure makes them suitable for high-speed applications such as gearboxes, motors, and automotive systems. They usually carry radial loads rather than axial loads. In contrast, double-row cylindrical roller bearings have two rows of rollers, which enhances radial load capacity and provides higher stability. They are commonly used in compressors, turbines, and railway systems. For the most demanding applications, four-row cylindrical roller bearings are the first choice. These bearings distribute the load over four rows and are ideal for heavy industries such as steel mills and rolling mills. It is worth noting that as the number of rolling rows increases, the external size and weight of the bearings also increase, which has an impact on the occasions they are adapted to.
The specific distinctions are shown in the table below.
Type of Bearing Design Applications Benefits Limitations Single-Row Cylindrical Roller Bearings One row of cylindrical rollers; compact and efficient. Gearboxes, electric motors, automotive. High-speed capability, simple design, easy maintenance. Limited axial load capacity. Double-Row Cylindrical Roller Bearings Two rows of rollers for greater radial load capacity. Compressors, turbines, railways, construction machinery. Enhanced load capacity, improved stability. Bulkier design, lower speed compared to single-row bearings. Four-Row Cylindrical Roller Bearings Four rows of rollers; designed for heavy-duty applications. Rolling mills, steel mills, heavy industrial machinery. Exceptional load distribution, durability under extreme loads. High cost, complex installation, and maintenance requirements.
In general, the choice of single-row, double-row, and four-row cylindrical roller bearings depends on the specific needs of your machine. Single-row cylindrical roller bearings are suitable for high speed and simple scenarios; double-row cylindrical roller bearings can support higher loads, and four-row cylindrical roller bearings can be used for extreme load requirements and non-high-speed operation scenarios. Choosing the right type will ensure that the bearing and machine are the best match and achieve the best performance and efficiency.
Other Types of Cylindrical Roller Bearings
Full Complement Cylindrical Roller Bearings
Precision Cylindrical Roller Bearings
Choosing the Right Cylindrical Roller Bearing
Choosing the right bearing is essential to ensure the reliability, efficiency, and life of the machinery. The following table will explain how to choose the most suitable bearing in terms of load capacity, speed requirements, accuracy, etc.
| Type | Key Features | Applications | When to Choose | Example Uses |
|---|---|---|---|---|
| Single-Row | High radial load capacity, compact design | Motors, gearboxes, pumps | When space is limited, speed is moderate, and axial loads are low | Electric motors, conveyor systems |
| Double-Row | Higher radial load capacity, increased rigidity | Machine tools, large gearboxes | When precision and rigidity are essential | CNC machines, large gearboxes |
| Four-Row | Extremely high radial load capacity | Rolling mills, heavy machinery | For heavy-duty applications with high radial loads | Rolling mills, industrial presses |
| Full-Complement | Maximum number of rollers, no cage | Cranes, slow-speed construction equipment | When load capacity is critical and speed is low | Cranes, construction machinery |
| Precision | Enhanced precision and reduced vibration | Machine tools, robotics | When precision and low vibration are vital | High-speed spindles, robotics |
Choosing the right type of bearing is important for getting the most out of your machine and making sure it works well. You can ensure the best fit for your application by considering factors such as load requirements, speed, space limitations, and working conditions. Technical assistance from a professional is available if you’re unsure which is best. The bearing experts at TFL Bearing will use their knowledge to give you specific advice.
