Taper Roller Bearing 32211 old model 7511E Size 55*100*25mm
- Benefits:
- Quick refunds on orders under US $1,000Claim now
55mm
100mm
- Samples:
-
55mm, 100mm
$4.97/Piece | 1 Piece (Min. Order) |
- Lead Time
If you finish the payment today, your order will ship out within the delivery date.
:
-
Quantity(Pieces) 1 – 1000 >1000 Est. Time(days) 3 To be negotiated
- Customization:
-
Customized logo(Min. Order: 1 Piece)Customized packaging(Min. Order: 1 Piece)
Product Inquiry

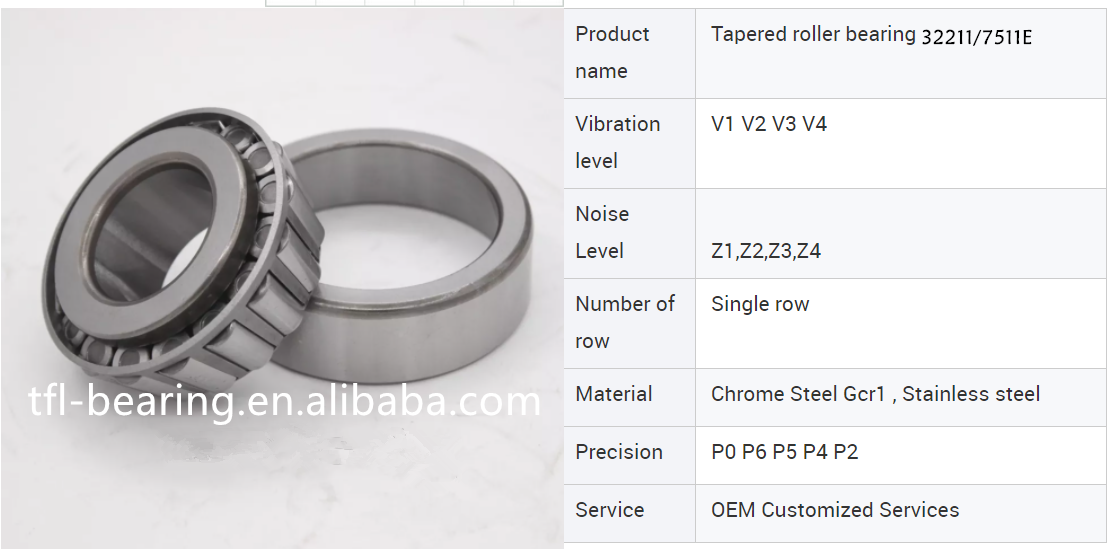

Taper Roller Bearing 32211 old model 7511E Size 55*100*25mm
This type of bearing is equipped with a round platform roller, the roller by the inner ring of the large rim. Single-row
bearings can bear radial load and unidirectional axial load, and double row bearings can bear radial load and bidirectional axial load. Suitable for bearing heavy load and shock load.
According to the different contact Angle (α), it can be divided into three types: small cone Angle, middle cone Angle and large cone Angle. The larger the contact angle is, the greater the axial load capacity is.
The outer ring and inner assembly (inner ring and roller and cage assembly) can be separated for easy assembly and disassembly.
Bearings with the rear auxiliary code “J” or “JR” have international interchangeability. Main applicable cage: steel plate stamping cage, synthetic resin forming cage, pin cage.Main applications of taper roller bearing： front wheel, rear wheel, transmission, differential pinion shaft. Machine tool spindles, construction machinery, large agricultural machinery, railway vehicle gear reducer, rolling mill roller neck and reducer. apes.
|
Item
|
Value
|
|
Model number
|
32211/7511E
|
|
Seals type
|
OPEN
|
|
Number of Row
|
Single row
|
