Inch 421437 EE420751 Taper Roller Bearing made in USA

Benefits:
 Quick refunds on orders under US $1,000Claim now
190.5mm
365.049mm
Samples:
190.5mm, 365.049mm

$29.68/Piece | 1 Piece (Min. Order) |

loading…
Lead Time
If you finish the payment today, your order will ship out within the delivery date.

:

Quantity(Pieces) 1 – 1000 >1000
Est. Time(days) 3 To be negotiated
Customization:
Customized logo(Min. Order: 1 Piece)
Customized packaging(Min. Order: 1 Piece)
  • Product Description
  • Original size:190.05*365.049*92.075mm EE420751 421437 Taper Roller Bearing



    EE420751 Inch Series Taper roller bearing consists of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.

    EE420751 Tapered roller bearings have specially designed raceways and asymmetrical rollers. The bearings can accommodate axial loads acting in one direction and simultaneously acting radial loads. The load is transmitted between the raceways via the rollers at an angle to the bearing axis, while the flange guides the rollers.
    Inch 421437 EE420751 Taper Roller Bearing made in USA

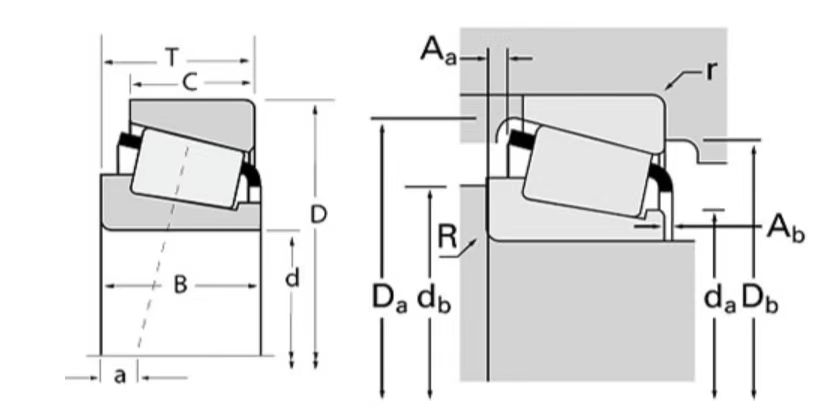

    Bearing No
    Taper Roller Bearing EE420751 (421437)
    d
    190.5mm
    D
    365.049mm
    T
    92.075mm
    Inch 421437 EE420751 Taper Roller Bearing made in USA
    Inch 421437 EE420751 Taper Roller Bearing made in USA
    Inch 421437 EE420751 Taper Roller Bearing made in USA
    Inch 421437 EE420751 Taper Roller Bearing made in USA
    Inch 421437 EE420751 Taper Roller Bearing made in USA
    Inch 421437 EE420751 Taper Roller Bearing made in USA
    Specification
    Item
    Value
    Model number
    EE420751 421437
    Seals type
    OPEN
    Number of Row
    Single row
    Rater of Load
    dynamic load:1080000
    static load:1820000
    Inch 421437 EE420751 Taper Roller Bearing made in USA
