Miniature Bearing 32204 Taper Roller Bearing 7504 made in USA
- Benefits:
- Quick refunds on orders under US $1,000Claim now
20mm
47mm
- Samples:
-
20mm, 47mm
$3.59/Piece | 1 Piece (Min. Order)
- Lead Time
If you finish the payment today, your order will ship out within the delivery date.
:
-
Quantity(Pieces) 1 – 1000 >1000 Est. Time(days) 3 To be negotiated
- Customization:
-
Customized logo(Min. Order: 1 Piece)Customized packaging(Min. Order: 1 Piece)
More
Product Inquiry

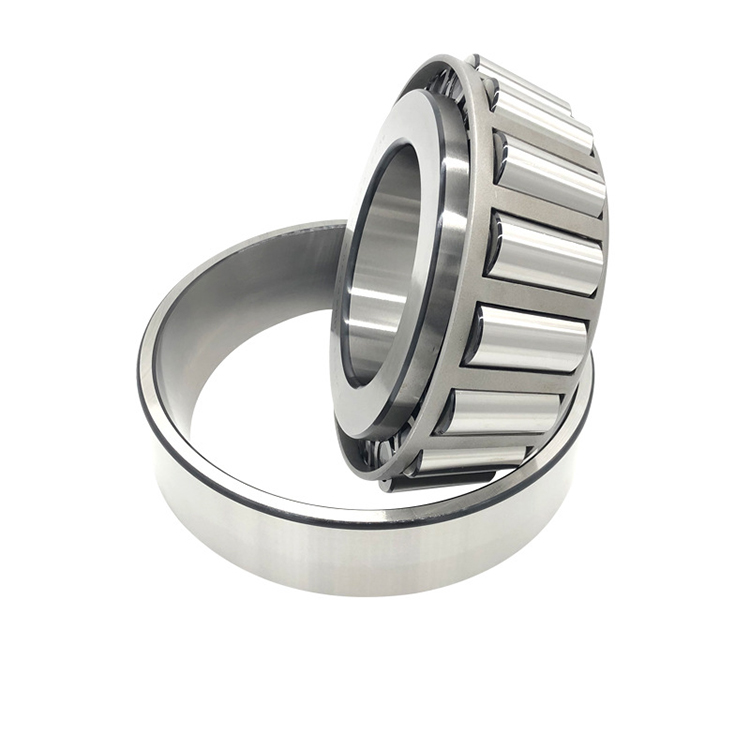

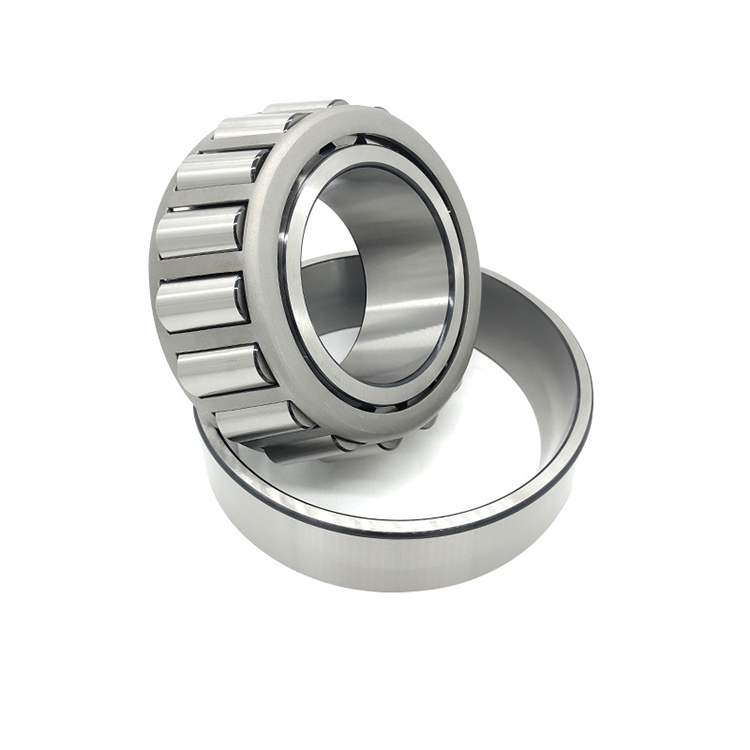

Original size:20*47*19.25mm 32204 Taper Roller Bearing 7308E

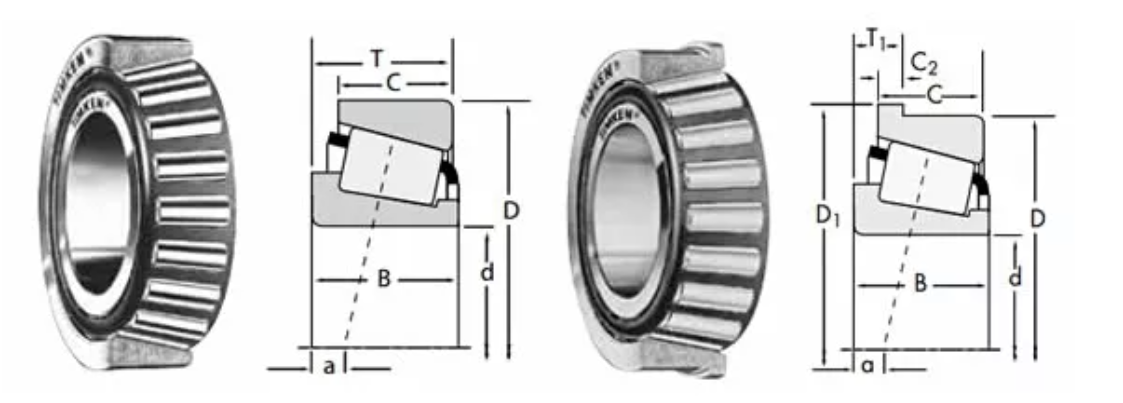

Tapered roller bearings are made up of four interdependent components: The inner ring, or cone; the tapered
rollers, or rolling elements; the roller retainer, or cage(collectively known as the cone assembly); and an outer
race, or cup. They are designed and manufactured to ensure that their conical rollers and raceways are arranged
so that their contact surfaces converge at a common apex on the bearing’s axis. The larger this contact angle the
greater the bearing’s loading capacity.
The angular construction of single row tapered roller bearings provides a high capacity for radial, axial, and
combined loads. Tapered roller bearings have window-type pressed steel cages with no marking. Other types
could be specifically designed on request.
Specification
|
Item
|
Value
|
|
Model number
|
32204/7504
|
|
Seals type
|
OPEN
|
|
Number of Rows
|
Single row
|
|
Cage
|
Brass Cage
|
