Stainless Self-aligning Ball Bearing S1204 SS1204
- Benefits:
- Quick refunds on orders under US $1,000Claim now
- Samples:
-
20 mm , 47 mm
$5.70/Piece | 1 Piece (Min. Order) |
- Lead Time
If you finish the payment today, your order will ship out within the delivery date.
:
-
Quantity(Pieces) 1 – 1000 >1000 Est. Time(days) 3 To be negotiated
- Customization:
-
Customized logo(Min. Order: 1000 Pieces)Customized packaging(Min. Order: 1000 Pieces)

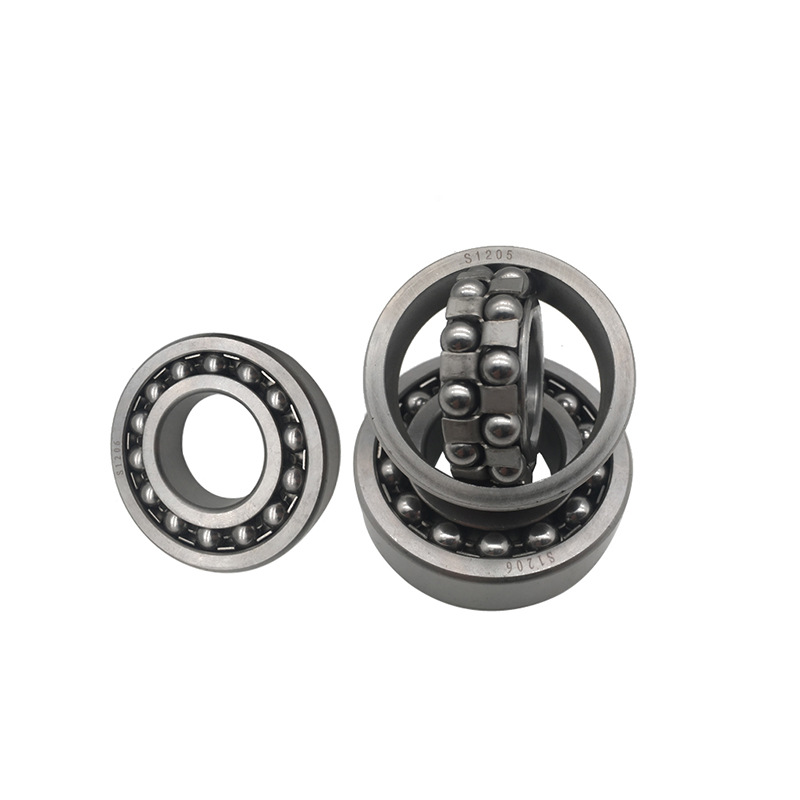

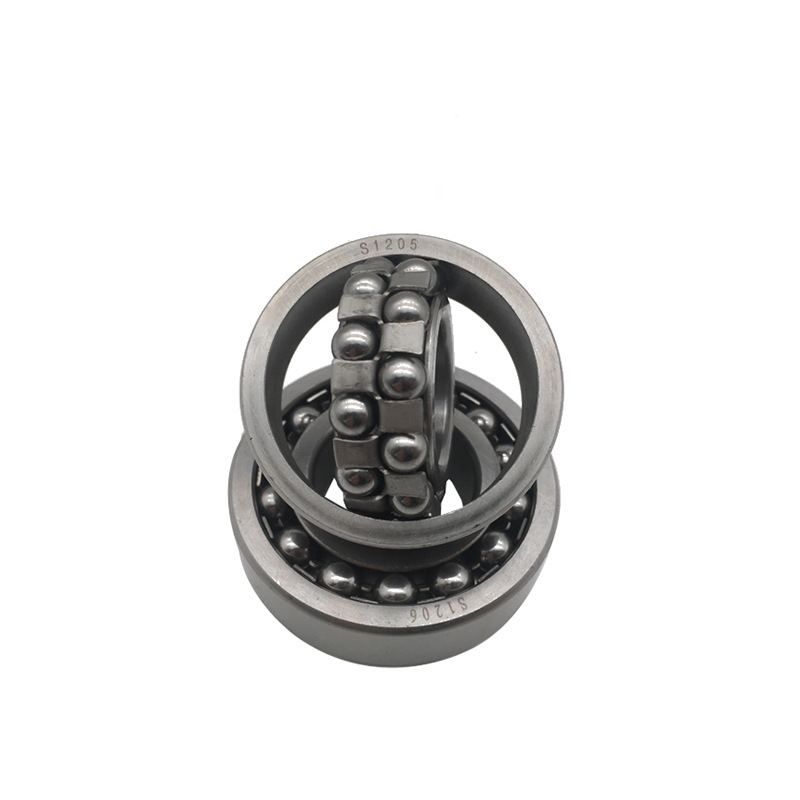

Stainless Self-aligning Ball Bearing S1204 SS1204
Self-aligning ball bearing is a bearing equipped with spherical balls between the inner ring of two raceways and the outer ring whose raceway is spherical.
With the swivelling inner ring, the stainless steel self-aligning ball bearing offers excellent alignment error
compensation. With the two rings of barrel-shaped rollers, it can absorb high radial forces. It is resistant to corrosion. Main
dimensions according to DIN 630.
compensation. With the two rings of barrel-shaped rollers, it can absorb high radial forces. It is resistant to corrosion. Main
dimensions according to DIN 630.
product details
|
Material
|
440C Stainless Steel Bearings
|
304 Stainless Steel Bearings
|
316L Stainless Steel Bearings
|
|
Bore Dia (d)
|
20 mm
|
||
|
Outer Dia (D)
|
47 mm
|
||
|
Width (B)
|
14 mm
|
||
|
Lubrication
|
Grease; Oil; Dry are available
|
||
|
Highest temperature
|
300 Degrees F
|
400 Degrees F
|
400 Degrees F
|
|
Magnetic
|
little
|
no
|
no
|
|
Hardness
|
58HRC
|
30HRC
|
30HRC
|
|
Corrosion Resistance
|
General
|
Better
|
Best
|
|
Grades
|
ABEC Grades 1; 3; 5; 7; and 9 are available.
|
||
|
Dynamic Load Rating (Cr) (N)
|
10000
|
6000
|
6000
|
|
Static Load Rating (Cor) (N)
|
2610
|
1566
|
1566
|
|
Max Speed (Grease)
|
14000
|
8400
|
8400
|
|
Max Speed (Oil)
|
17000
|
10200
|
10200
|
|
Weight (g)
|
120
|
72
|
72
|
