THK SVR25R SVR25C SVR25LC SVR25LR SVR25 THK Linear guideway rail blocks

Width: 50 mm

Samples: THK SVR25R SVR25C SVR25LC SVR25LR SVR25 THK Linear guideway rail blocks

$57.80/Piece | 1 Piece (Min. Order) |

Lead Time–If you finish the payment today, your order will ship out within the delivery date.

Quantity(Pieces)	1 – 1000	>1000
Est. Time(days)	3	To be negotiated

Customization:: Customized logo(Min. Order: 1 Piece)

Customized packaging(Min. Order: 1 Piece)

Product Description

Product Specification

THK SVR25R SVR25C SVR25LC SVR25LR SVR25 THK Linear guideway rail blocks

Models SVR/SVS have higher rigidity and load-bearing capacity than other Caged-Ball LM Guide series models. In addition, they maintain the performance of the LM Guide and achieve high reliability by enhancing the dust-control performance with a wide range of options that consider the service environments of machine tools and other machinery.

Ultra-heavy load increased the damping effect.

The raceway of models SVR/SVS adopts a circular-arc deep groove with a curvature approximate to the ball diameter. This increases the ball contact area in response to the increased applied load, achieves a large load-carrying capacity, and increases the damping effect.

Improved dust-control performance

The foreign material removal function has been enhanced to improve dust-control performance by introducing a newly developed protector. In addition, these models adopt the side scraper to reduce the entrance of foreign material into the LM block and maintain the LM Guide performance for an extended period, even in adverse environments.

High rigidity

Models SVR/SVS are the most rigid types among the Caged Ball LM Guide series. The radial type SVR and the 4-way type SVS are available for each size variation. Depending on the intended use, you can select either type.

A wide array of options

Various options, including end seal, inner seal, side seal, Laminated Contact Saaper LaCS, protector, side scraper, and GC-cap, are available to respond to diversified applications.

Model No.	SVR25R
Main dimensions	M	31
	W	50
	L	82.8
LM block size	B	32
	C	35
	S×L	M6×8
	L1	61.4
	T	9.7
	K	25.5
	N	7.8
	f0	5.1
	E	12
	e0	4.5
	D0	3.9
Weight	LM Block KG	0.4
Weight	LM Rail KG/M	2.9
Basic rated load	Dynamic rating(C) kN	48.2
Basic rated load	Static rating(Co) kN	68.1
LM Rail size	W1	25
	W2	12.5
	M1	17
	F	40
	d1×d2×h	6×9.5×8.5

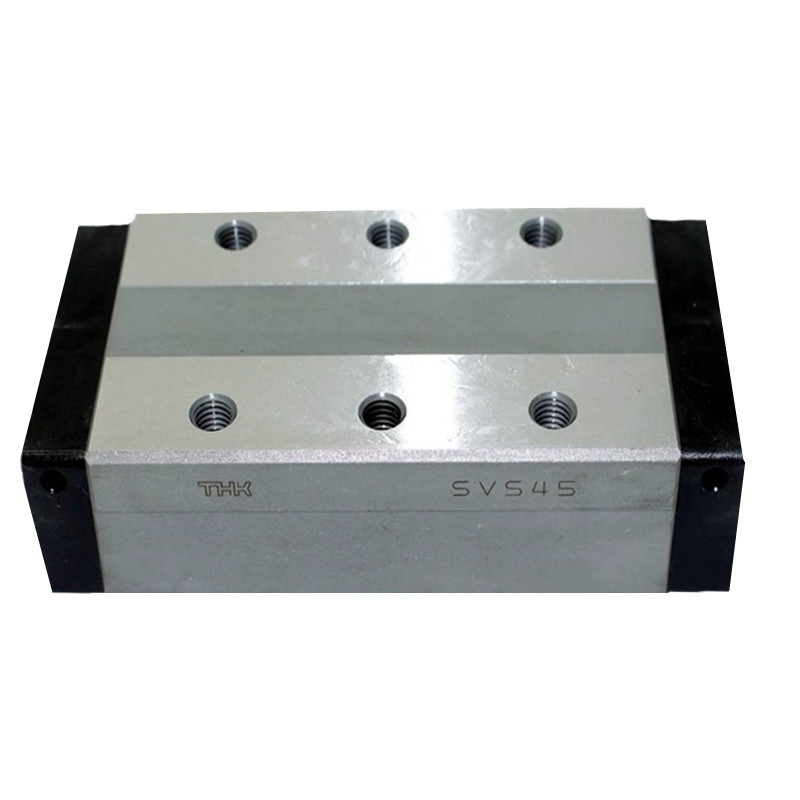

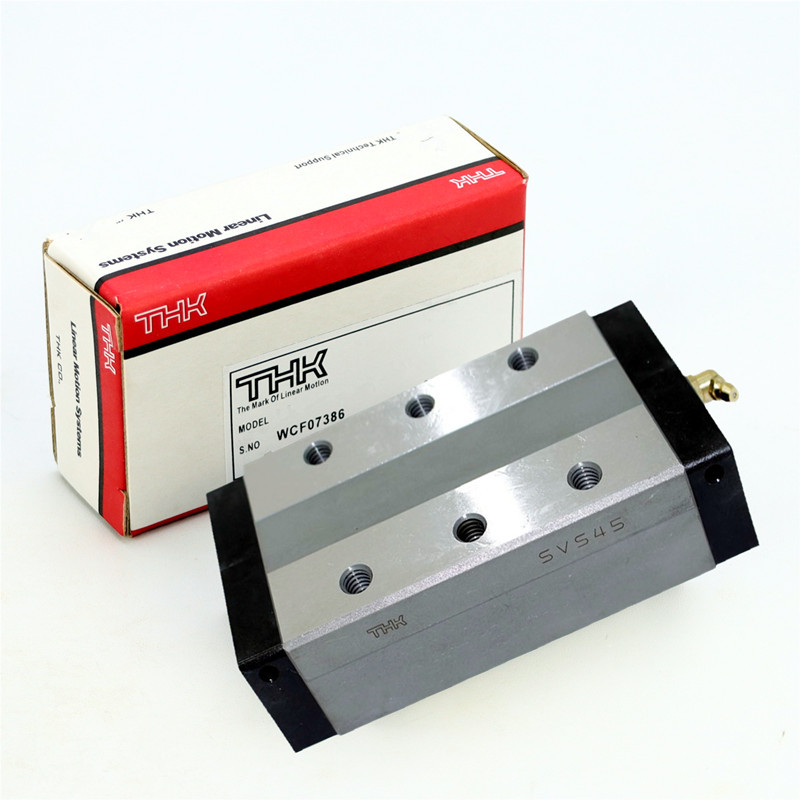

THK SVR25R SVR25C SVR25LC SVR25LR SVR25 THK Linear guideway rail blocks — THK-SVS45-linear-motion

FAQ: What are the load capacity and precision characteristics of the THK SVR25R linear guide?

THK SVR25R is a high-performance linear guide that belongs to THK’s LM ball guide series. It is known for its excellent load capacity, high precision and stability, and is widely used in various precision mechanical equipment.
1. The SVR25R series guide has a high-rated load and can withstand large static and dynamic loads. This enables it to maintain stable operation in harsh working environments;
2. In addition to radial loads, SVR25R can also withstand certain tilting loads and torques, which increases its application flexibility;
3. Precision machining technology is used to ensure the geometric accuracy of the guide rail, such as straightness and parallelism, thereby ensuring the motion accuracy of the equipment;
4. The rolling friction between the ball and the guide rail is extremely small, which reduces the motion resistance and improves the smoothness of the motion;
5. The guide rail has high rigidity and can effectively resist deformation caused by external loads to ensure the stability of motion.

Brand Name: THK

Condition: New

Warranty: 1 year

Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works, Energy & Mining

Showroom Location: Italy, Saudi Arabia, Indonesia, Pakistan, Thailand, South Korea, UAE, Japan, Malaysia

Video outgoing inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Core Components: Bearing

Weight: 0.5 KG

Material: GCr15 or Stainless steel

Block Type: Square
